The Jimi inspired by Jimi Hendrix' Strat treatment.

The Jimi

Mythical Myth Busting Upside Down Strat.

MD-Cuckoocaster-Designs-The-Jimi-Essay-Part1.md

Model Gallery

1. Unscrew

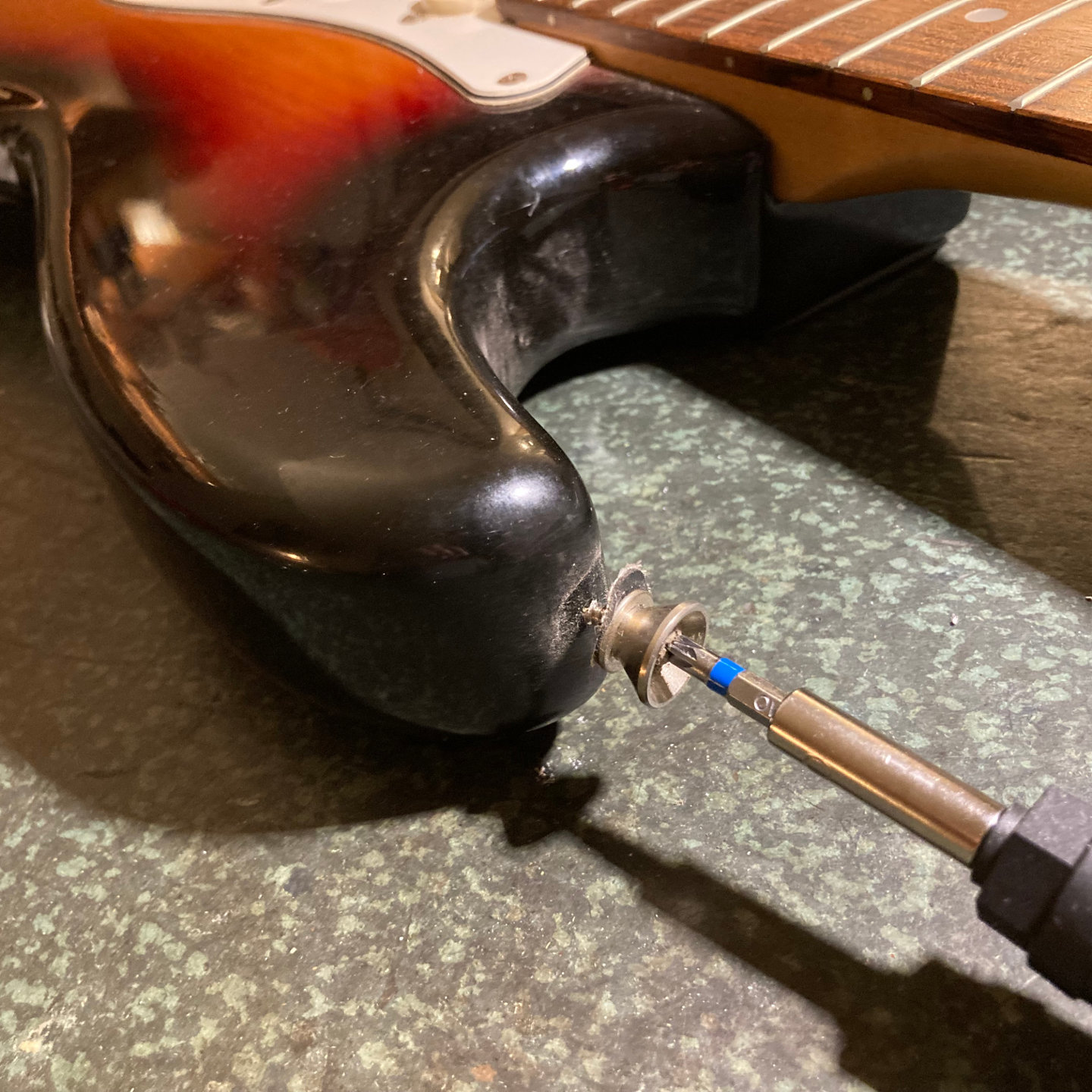

The necessary changes to the body are minimal. Unscrew the lefty front strap pin.


2. Drill hole

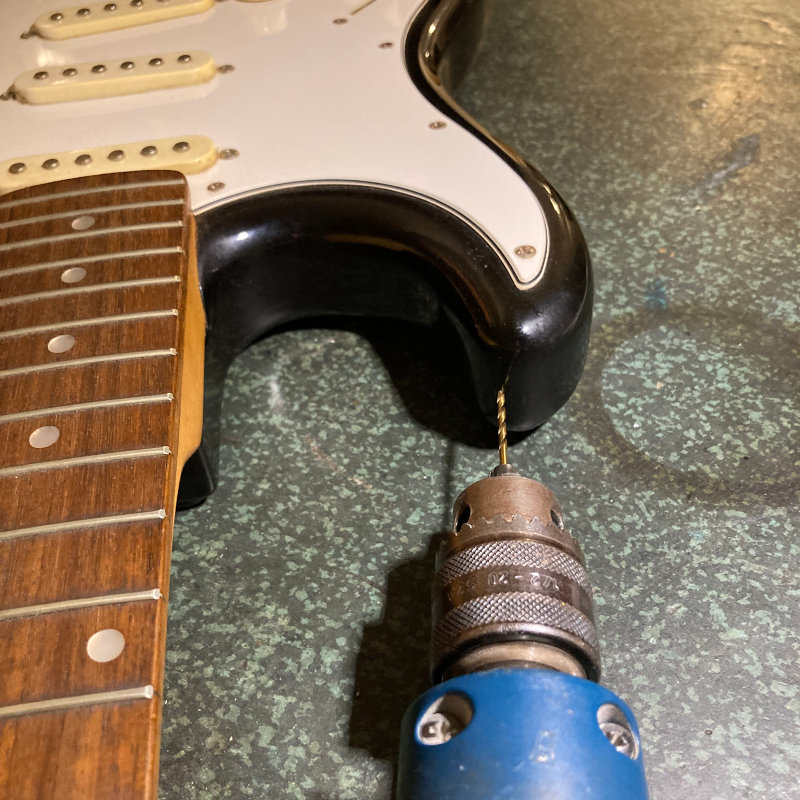

Drill a hole into the smaller horn at the front. Make sure it's slightly slanted inwards.


3. Screw

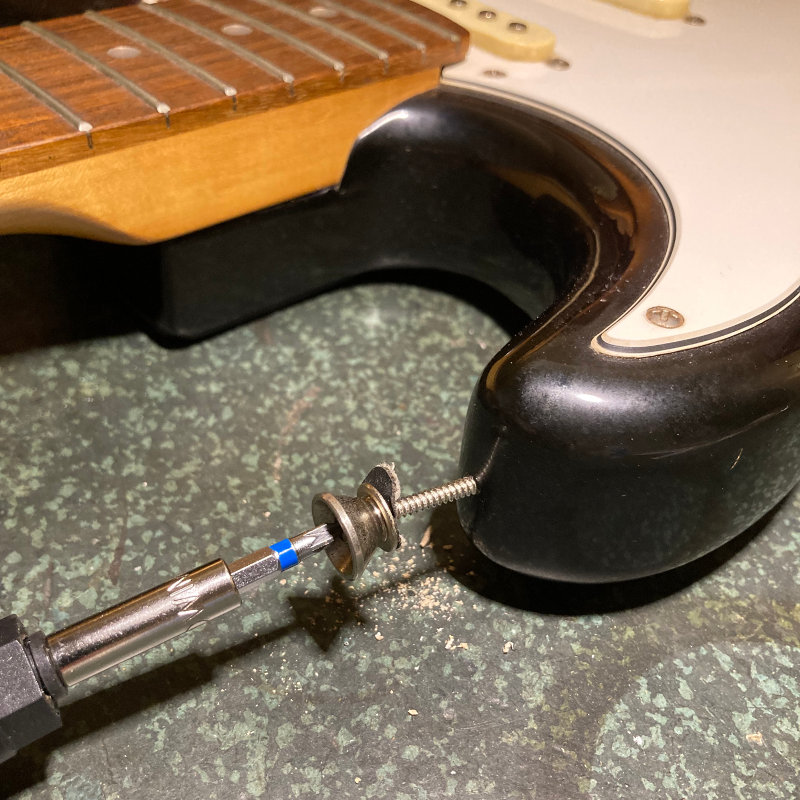

Screw the strap pin into the small horn. Now you need to restring it and possibly change the nut (optional).


MD-Cuckoocaster-Designs-The-Jimi-Essay-Part2-FlipChanges.md

Template Download

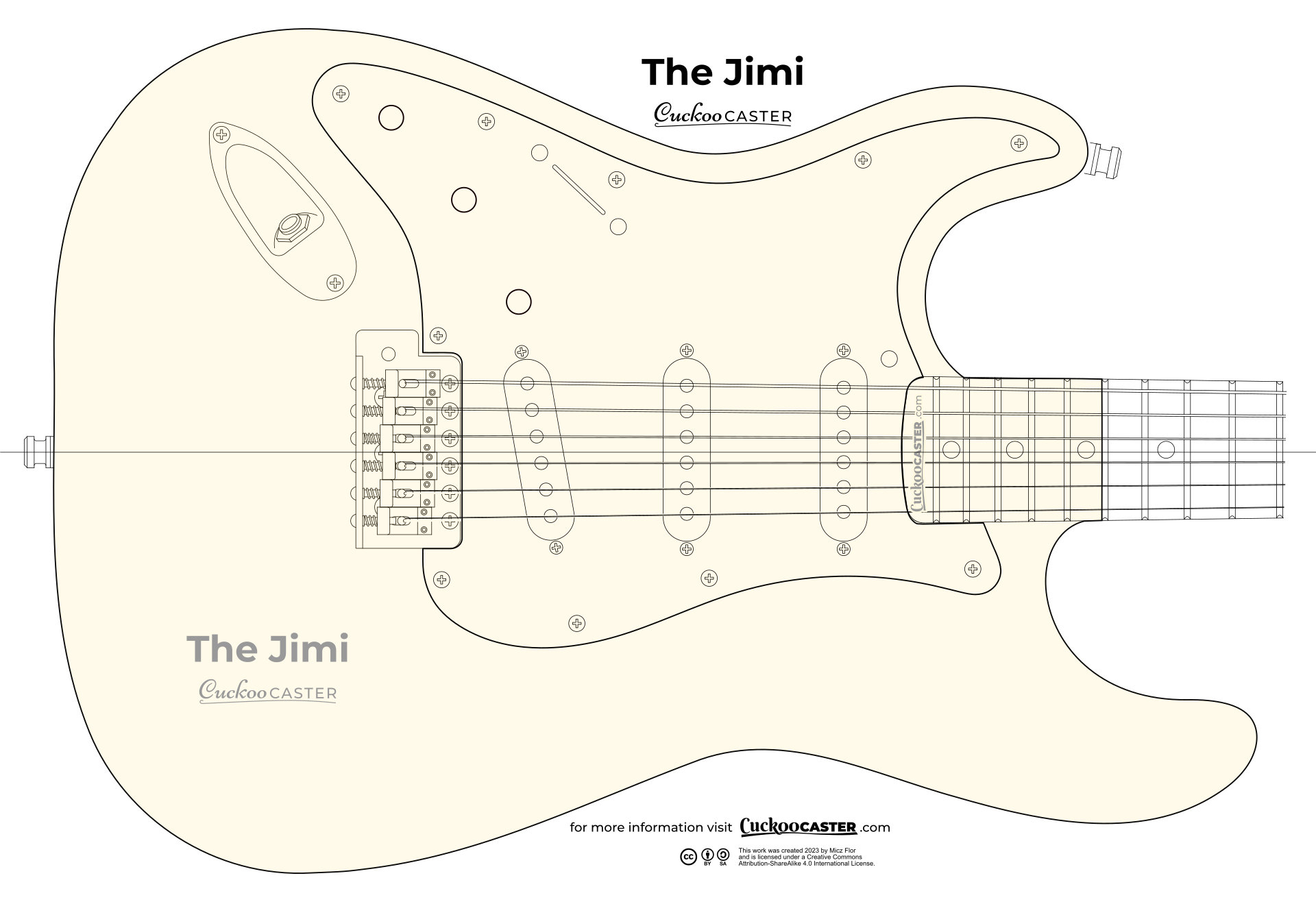

Download the PDF of your new guitar. If you print multiple pages, keep actual size (no re-sizing to fit printing area!).

THE JIMI design on A4 sheets | Split into four A4 pages. Should work for US Letter, too.

Download

THE JIMI design on single sheet | The entire design on one large PDF.

Download
